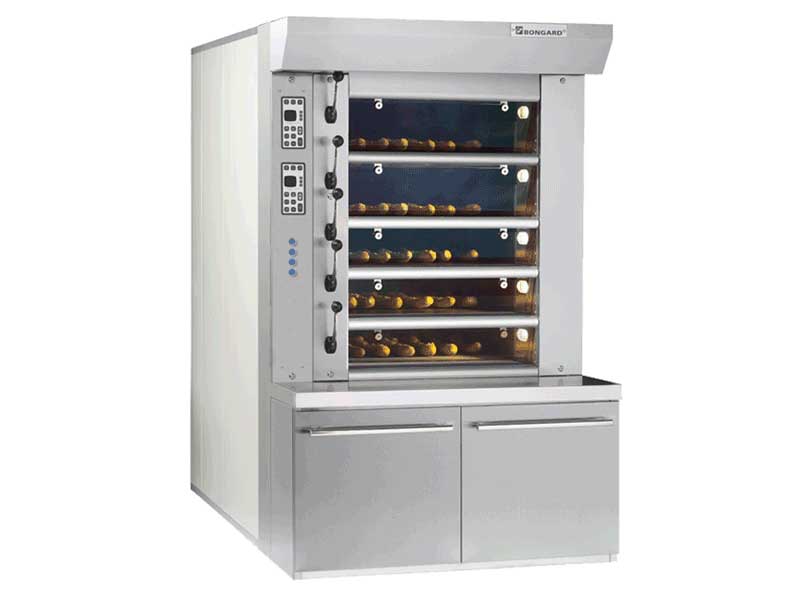

Bongard Cervap Compact DB GME Deck Oven

Bongard's Cervap GME Deck Oven is a unique combination of a dual fuel oven and an electric oven.

The lower decks of the oven are gas fired whilst the top deck is electrically heated, which gives even greater flexibility and freedom.

Separate upper and lower heat thermostats ensure total control of the heat on the top deck and with a deck clearance height of 254mm, it is suitable for baking larger items.

Available with different claddings, the Cervap Compact DB GME Deck Oven is built separately which means they fit through a standard doorway and assembled on site.

Contact Us

For further information on this product or to request a quotation please email: sales@monoequip.com

Features
Specifications
Brochures

— Two models available to fit in a baking area between 4.9m2 or 5.7m2 - model dependant

— Can be stacked up to 5 decks high

— Combination dual-fuel oven - gas and oil fueled with an electrically heated top deck

— Independent controls for top and bottom elements

— Features a patented circular steam tube system

— Option to have an Ergocom or Opticom control panel

— Single-piece, heavy sole plates for evenly distributed bottom heat perfect for traditional oven-bottom bread

— Hygienic stainless steel construction, inside and out

— Available with different claddings: stainless steel , brick or tiles

— Heat reflecting glass doors

— Annular tubes guaranteed for 10 years

— Thermostatically controlled steam generators

— Upper deck high clearance 254mm

— Generous, thick slabs of rock wool insulation deliver exceptional heat retention

— Helps reduce energy consumption by only heating the decks required

— Modular components - make it suitable for installation in basements or above-ground-level locations

— Doors of 800mm

Specifications	Compact DB GME 123	Compact DB GME 143
Width (mm)	1,540	1,540
Depth (mm)	2,215	2,425
Height - 5 decks (mm)	2,376	2,376
Baking area (m2)	4.9	5.7
Internal baking chamber height - top deck (mm)	220	220
Internal baking chamber height - other decks (mm)	160	160
Weight (kg)	1,800	1,950
Gas burner	Y	Y
Fuel-oil burner	Optional	Optional
Ergocom Controller	Y	Y
Opticom Controls	Optional	Optional
Without steam vent	Optional	Optional
Steam vent on upper deck	Optional	Optional
Steam vent on each deck	Optional	Optional
Hood without exhaust fan	Y	Y
Hood with exhaust fan	Optional	Optional
Without Hooks for loader/unloader	Y	Y
With hooks for loader/unloader	Optional	Optional
Water supply	Y	Y
Modularity	Y	Y
Pulsed steam injection	Y	Y
Fresh air inlet on burner	Y	Y
Right hand hinged	Optional	Y
Left hand hinged	Y	Y
Electrics - UK
Power Supply	Single phase plus N, 230v, 50/60Hz, 7.1kw	Single phase plus N, 230v, 50/60Hz, 7.7kw

Click on the link below to view the Cervap Compact DB GME Brochure:

Cervap Compact DB GME Deck Oven (GB)
