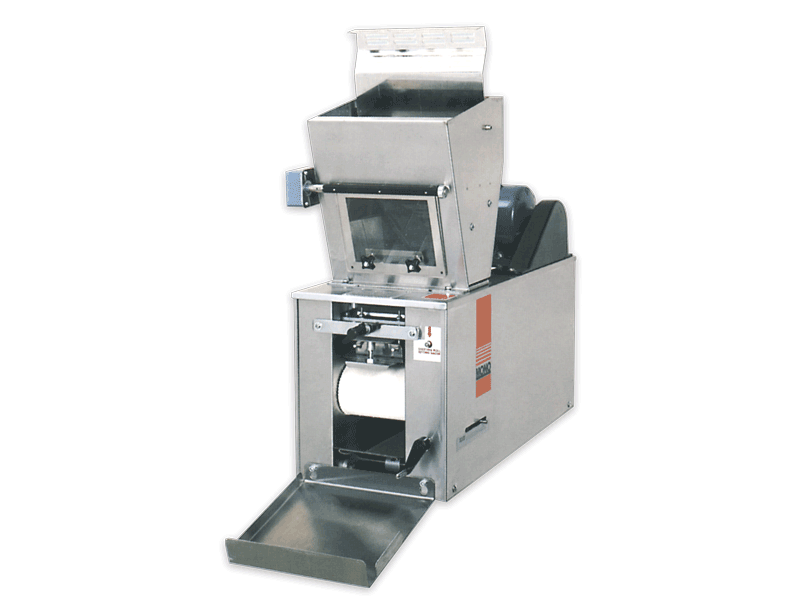

MONO Mini Moulder

The table-top Mini-Moulder provides the perfect solution for small businesses that have limited space but need to produce a wide range of breads up to 6 inches long.

Dough pieces are easily fed into the Mini-Moulder and the dual sheeting rollers give a gentle reduction of the dough while the curling chains provide improved consistency of shape and size, giving a tight mould with no tails.

Teflon coatings used in the dough path prevent the dough sticking to the rollers and curling chains.

— For Warranty click here

Contact Us

For further information on this product or to request a quotation please email: sales@monoequip.com

Features
Specifications
Brochures
User Manuals

— Product weight range between 28g to 900g

— Produces up to 1,000 pieces per hour

— Engineered in hygienic stainless steel for quick and easy cleaning

— Simple one-person operation reduces labour costs

— Suitable for producing a range of products up to 152mm long

— Teflon coatings in the dough path prevent dough sticking to the rollers or curling chains

— Pressure can be easily changed to ensure correct formation of the dough piece

— Small and compact - takes up very little space

— Adjustable sheeting rollers controls the thickness of the dough piece

Specifications	Mini
Height (mm)	889 (35")
Height on stand (mm)	1,651 (65")
Depth (mm)	1,054 (41.5")
Width (mm)	343 (13.5")
Weight (kg)	110 (243lbs)
Product weight range (g)	28 to 900 (1oz-2lbs)
Electrics *
Power Supply	Single or 3 phase and neutral, 0.37kW

* An electrical socket must be protected by a 30mA Type A Residual Current Device (RCD) before installation and commissioning of the oven.

Click on the link below to view the Mini Moulder Brochure:

MONO Equipment Mini Moulder Brochure (UK)

Click on the link below to view the Mini Moulder User Manual:

Mono Mini Moulder User Manual (UK)
