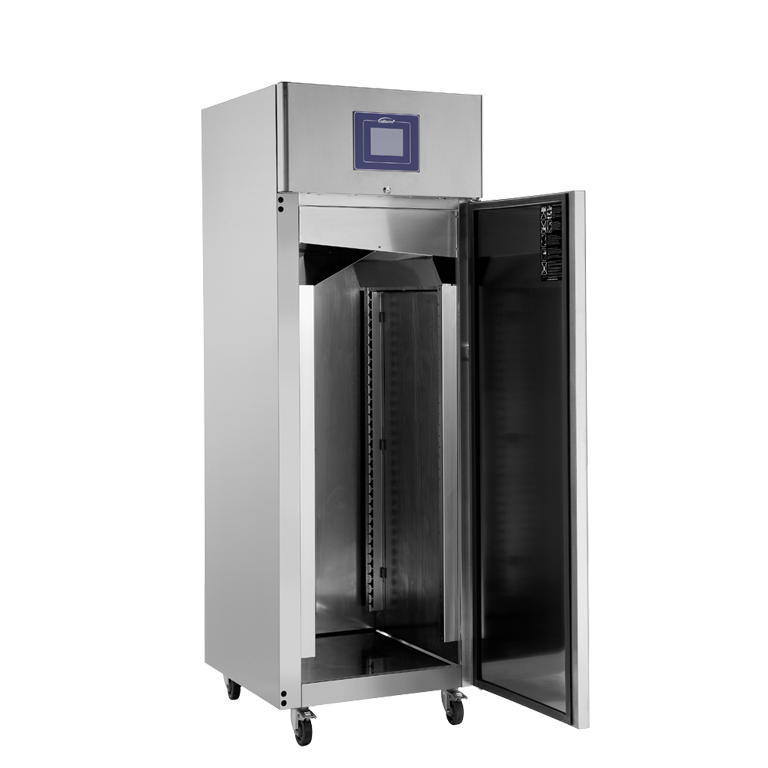

Williams Upright Dough Retarder
Williams range of Crystal upright provers are designed for the bakery sector and can accomodate British and European tray sizes.
Available in two size formats, the Crystal Provers are manufactured in hygienic stainless steel and are engineered to operate efficiently and reliably.
Contact Us
For further information on this product or to request a quotation please email: sales@monoequip.com
— Available in 2 size formats - 1 or 2 door — Innovative, easy to use controller ensures excellent temperature control — Accommodates either 20 or 40 18" x 30" trays on adjustable tray-slides - model dependent — Removable racking system with nylon coated shelving for a flexibility and ease of cleaning — Anti-tilt tray-slides stop shelves from tipping — Barrel locked doors for added security and stock control |
— Adjustable operating temperature for maximum effectiveness, even in the hottest environments — Designed to operate efficiently up to 43C ambient environments — Manufactured in hygienic stainless steel — Self closing door to minimize temperature gain, reducing energy consumption — Precision injected, high density 75mm polyurethane insulation provides excellent thermal efficienty - with low GWP and zero ODP — Heat and humidity indicator
|
Specifications | Crystal Retarder - One Door | Crystal Retarder - Two Door |
---|---|---|
Height - external (mm) | 2,140 | 2,140 |
Height -internal (mm) | 1,550 | 1,550 |
Width - external (mm) | 737 | 1,400 |
Width - internal (mm) | 587 | 1,250 |
Depth - external (mm) | 941 | 941 |
Depth - internal (mm) | 800 | 800 |
Door opening (mm) | 1,636 | 1,594 |
Weight (kg) | 155 | 205 |
Capacity - 18"x30" Trays | 20 | 40 |
Trayslides | 20 | 40 |
Electrics | ||
Power Supply | Single phase, 13A maximum load. Suitable for 200v, 230v and 240v, 50Hz | |
Power Input |
15.3amps |
|
Energy Consumption in 24 hrs (kW) | 4.1 | |
Noise level | Less than 60db |
Click on the link below to view the Crystal Retarder Brochure:
