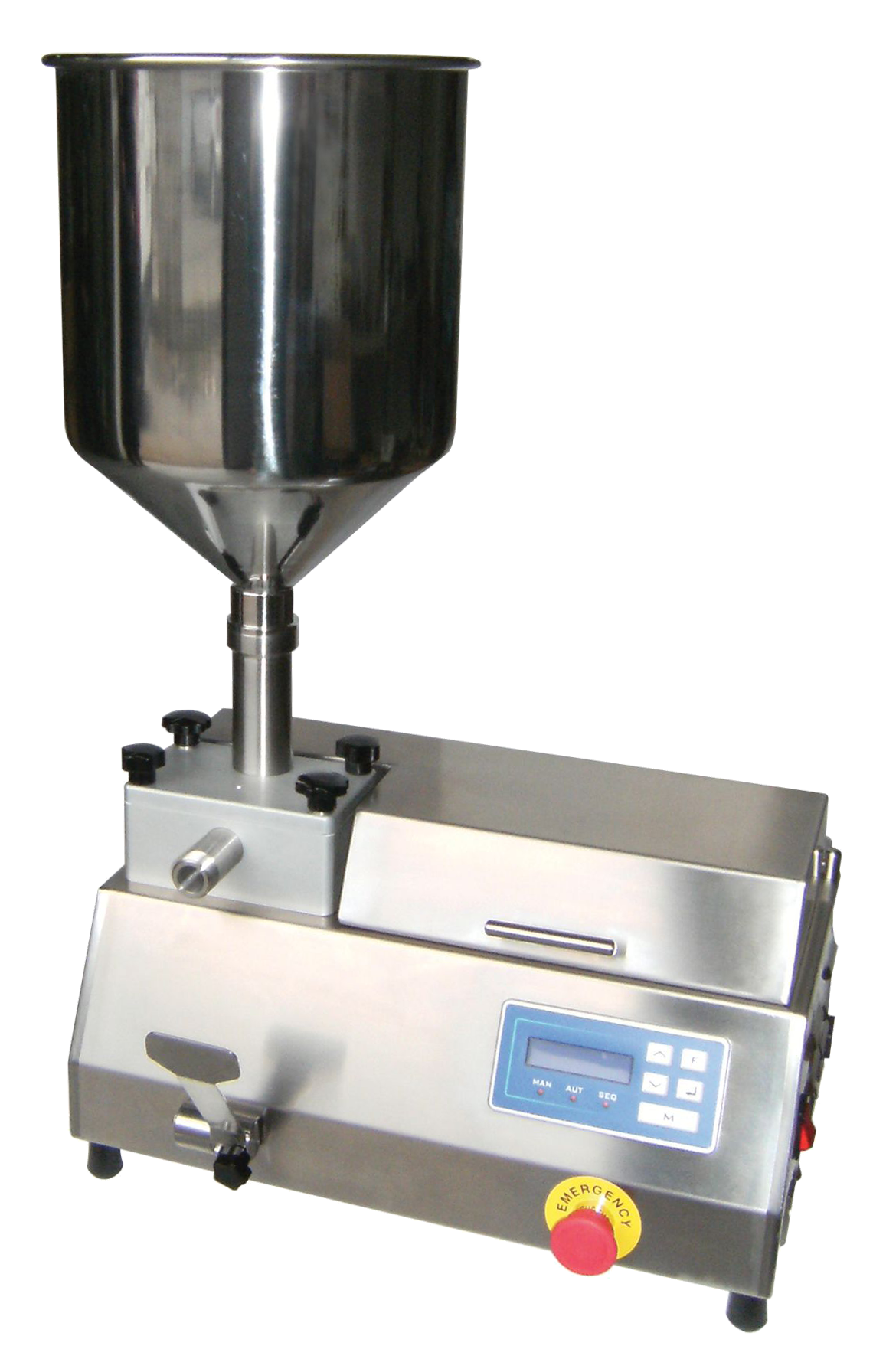

DOSATEC ELECTRONIC DOSER

The Dosatec Electronic Doser provides the perfect solution for depositing / filling a variety of pastries and desserts with a wide range of products including creams, jams, chocolate sauces, custards, fruit purees and cake batters with efficiency and accuracy.

The hygienic stainless steel hopper holds up to 15 litres of filling whilst the powerful base unit enables you to programme up to 10 different recipes which can be instantly recalled via a simple and intuitive keypad.

There are two models available:

Dosatec Economy - comes with 1 nozzle
Dosatec Plus - comes with 3 nozzles (6mm & 8mm diameter and a double nozzle)

Lobed Gears can be used with both models to deposit/inject with particles up to 13mm diameter

Contact Us

For further information on this product or to request a quotation please email: sales@monoequip.com

Features
Specifications
Brochures

— Fills up to 50 pieces per minute

— Comes complete with Food Pedal for ease of use

— Helps reduce wastage due to volume accuracy & consistency

— Generous 15 litres stainless steel hopper

— Stores up to 10 of your most popular recipes for instant recall

— Variable speed settings

— Stainless steel gears & stainless steel lobed gears also available to use with chocolate creams and hot products

— Single phase 'Plug & Play'

— Small and Compact to maximise countertop space

— Deposits with particles up to 13mm (with lobed gears)

— Optional Hand Gun and various attachments available

Width	470mm
Depth	330mm
Height	720mm
Weight	27kg
Power	Single Phase 0.37kW, 200/240V, 50/60Hz

Dosatec Electronic Doser Factsheet
