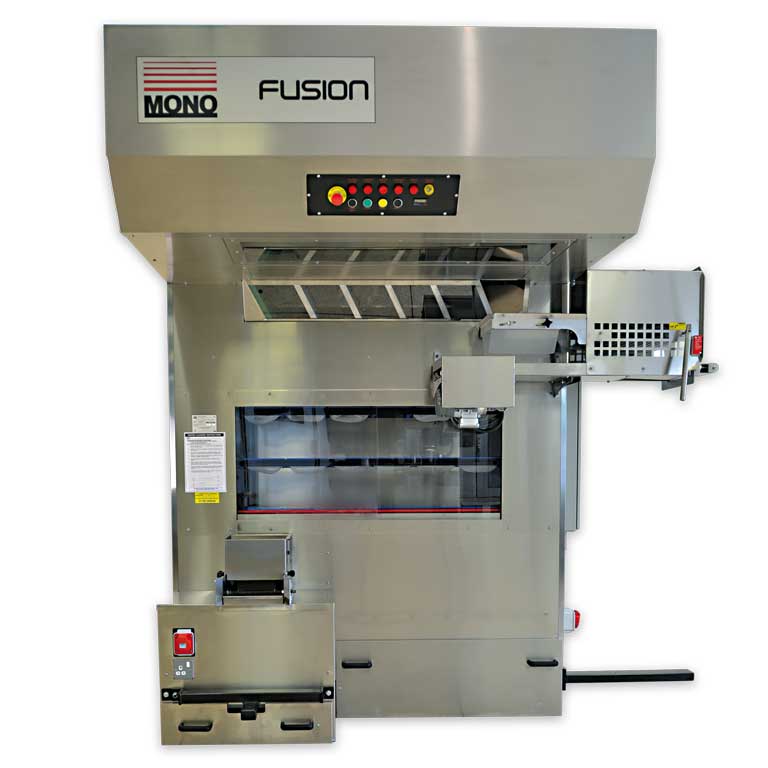

MONO 180-Pocket Intermediate Dough Prover

The Intermediate Prover is a 180-pocket automatic proofing system designed to gently rest divided dough pieces before they are moulded. Dough gradually progresses through the pockets inside the prover during the ten minute proof time.

The dough pieces are continuously fed into the Intermediate Prover from the divider and each piece is automatically placed into the special plastic carrier pockets. Dough sticking is prevented thanks to the use of Teflon coating on the infeed chutes and the mesh pockets which allow air to pass freely around the dough during the proofing cycle.

At the end of the proofing period, each dough piece is automatically passed through dough centralising guides and along a fully automated conveyor belt before being delivered to the moulder.

— For Warranty click here

Contact Us

For further information on this product or to request a quotation please email: sales@monoequip.com

Features
Specifications
Brochures
User Manuals

— Produces up to 960 pieces per hour

— Product weight range between 250g-1000g

— 10 minute intermediate proof to gently rest the dough

— 180 perforated plastic pockets to prevent dough sticking

— Suitable for producing a range of products including bloomers, tin breads, small batons and French sticks

— Simple one-person operation reduces labour costs

— Manufactured in hygienic stainless steel for quick and easy cleaning

— Teflon coated infeed chute to prevent dough from sticking

— Easy to reach control panel makes operating quick and simple

— Simple to use lever to set the curling chain required for either loaves or French sticks

— Output conveyor features dough centralising and pre-moulding, for improved final mould quality

— Viewing panels to provide complete visibility of dough progression throughout the proofing process

Specifications	180-Pocket Prover
Height (mm)	2,515 (99")
Depth (mm)	1,650 (65")
Width (mm)	1,750 (69")
Weight (kg)	1,470 (3,240lbs)
Capacity per hour	960
Capacity (g)	250g - 1,000g (9oz-2lbs)
Noise level	Less than 85db
Electrics *
Power Supply ** An electrical socket must be protected by a 30mA Residual Current Device (RCD) before installation and commissioning.	3 phase, 415v, 50Hz, 0.86kW

* An electrical socket must be protected by a 30mA Type A Residual Current Device (RCD) before installation and commissioning of the oven.
