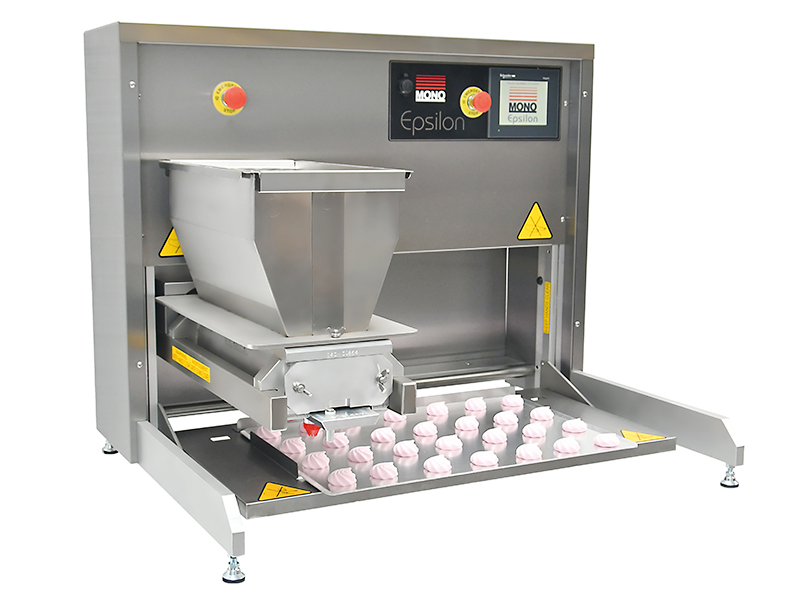

MONO Epsilon

Mono Equipment’s innovative Epsilon Tabletop Confectionery Depositor is one of the smallest tabletop confectionery depositor available – requiring just 950mm width of space in which to operate.

The Epsilon’s unique travelling hopper system removes the need for a conveyor belt which means trays can be loaded and unloaded in the most ergonomically efficient way – directly from the front of the machine.

Equipped with up and down as well as backward and forward movements the Epsilon Tabletop Confectionery depositor is designed to produce an endless array of high quality products and will process a wide range of products including Sponge Sheets, Swiss Roll, Angel Cake, Genoese, Chocolate Brownies, Carrot Cake, Drops, Eclairs, Cup Cakes, Fairy Cakes, Muffins, Macarons, Choux Buns and Biscuits.

— For Warranty click here

Contact Us

For further information on this product or to request a quotation please email: sales@monoequip.com

Features
Specifications
Brochures
Videos
User Manuals
Spare Parts

— Fits through a standard door way

— Less than 1 square metre of space needed to operate

— Single phase 'Plug-&-Play' means immediate productivity

— Innovative travelling hopper system reduces space required

— Quick and simple product, hopper and template changeover

— Provides total control of product weight, size, height, length and shape

— Extensive range of hoppers, templates, nozzles and accessories available

— Incorporates 15 international languages

— Large hopper capacity for improved productivity

— Two sizes available to fit up to 400 and 450mm wide trays

— Suitable for soft doughs

— Quick and easy one person set up and operation

— Produces up to 16 deposits per cycle

— Stores up to 96 programmes for quick product recall

— Ergonomic front-loading system reduces operator strain and improves efficiency

— Hygienic stainless steel construction ensures cleaning is quick and easy

— Pour-through hopper for quick and easy filing

— User-friendly TFT Touch Screen Controller

Specifications	Epsilon 400	Epsilon 450
Height (mm)	775 (30.5")	775 (30.5")
Height to hopper (mm)	550 (21.5")	550 (21.5")
Fits tray sizes (mm)	400 x 600	Up to 450 x 762
Depth (mm)	742 (29.25")	790 (31")
Width (mm)	977 (38.5")	1,139 (44.75")
Area of base (m2)	0.714 (7.68sqft)	0.825 (8.88sqft)
Height to control panel (mm)	700 (27.5")	700 (27.5")
Weight with soft hopper fitted (kg)	100 (220lbs)	100 (220lbs)
Approx. Cycles per minute (mix dependant)	16	16
Hopper capacity soft dough (litre)	20 (4.25gal)	22.5 (5gal)
Maximum height of deposited product (mm)	80 (3")	80 (3")
Maximum height of tins (mm)	36 (1.25")	41 (1.5")
Maximum programme storage	96	96
No of languages	14	14
Electrics *
Power Supply * An electrical socket must be protected by a 30mA Type A Residual Current Device (RCD) before installation and commissioning of the oven.	Single phase, 13A maximum load. Suitable for 110v, 200v, 220v, 230v and 240v, 50-60Hz, IP53 maxi,um, no isolator
Maximum power rating	2.5kW single phased fused at 13A
Noise level	Less than 85db

Click on the item below to open the Brochure:

MONO Epsilon Tabletop Depositor (UK)

MONO Epsilon Tabletop Depositor (FR)

MONO Epsilon Tabletop Depositor (DE)

MONO Epsilon Tabletop Depositor (RU)

Click on the link below to open the User Manual:

MONO Epsilon Confectionery Depositor User Manual (GB)

MONO Epsilon Confectionery Depositor User Manual (FR)

MONO Epsilon Confectionery Depositor User Manual (USA)

MONO Epsilon Confectionery Depositor User Manual (NL)

MONO Epsilon Confectionery Depositor User Manual (RU)

Click the link below to view the Epsilon Depositor Quick Start Guide:

MONO Epsilon Quick Start Guide

Click on the link below to view the Epsilon Spare Parts Manual:

MONO Epsilon Confectionery Depositor Spare Parts (GB)
